Specifications
ROG Ally(2023) RC71L
Operating System
Windows 11 Home
Processor
AMD Ryzen™ Z1 Extreme Processor
CPU: “Zen4” architecture with 4nm process, 8-core / 16-threads, 24 MB total cache, up to 5.10 GHz boost
GPU: AMD Radeon™ Graphics (AMD RDNA™ 3, 12 CUs, up to 2.7 GHz, up to 8.6 Teraflops)
TDP: 9-30W
CPU: “Zen4” architecture with 4nm process, 8-core / 16-threads, 24 MB total cache, up to 5.10 GHz boost
GPU: AMD Radeon™ Graphics (AMD RDNA™ 3, 12 CUs, up to 2.7 GHz, up to 8.6 Teraflops)
TDP: 9-30W
Display
7-inch
FHD (1920 x 1080) 16:9
IPS-level
glossy display
sRGB:100%
Gorilla® Glass DXC
Gorilla® Glass Victus™
Touch Screen (10-point multi-touch)
Refresh Rate:120Hz
Response Time:7ms
Brightness:500nits
AMD FreeSync™Premium
FHD (1920 x 1080) 16:9
IPS-level
glossy display
sRGB:100%
Gorilla® Glass DXC
Gorilla® Glass Victus™
Touch Screen (10-point multi-touch)
Refresh Rate:120Hz
Response Time:7ms
Brightness:500nits
AMD FreeSync™Premium
Memory
16GB LPDDR5 on board (6400MT/s dual channel)
Storage
512GB PCIe® 4.0 NVMe™M.2 SSD (2230)

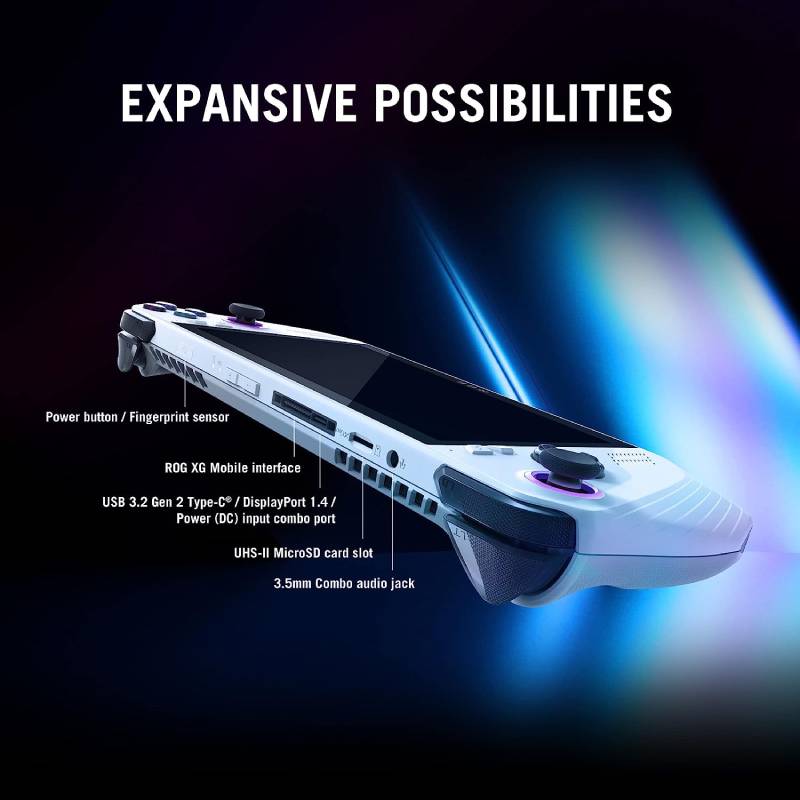

I/O Ports
1x 3.5mm Combo Audio Jack
1x ROG XG Mobile Interface and USB Type-C combo port (with USB 3.2 Gen2, support DisplayPort™1.4)
1x card reader (microSD) (UHS-II)
1x ROG XG Mobile Interface and USB Type-C combo port (with USB 3.2 Gen2, support DisplayPort™1.4)
1x card reader (microSD) (UHS-II)

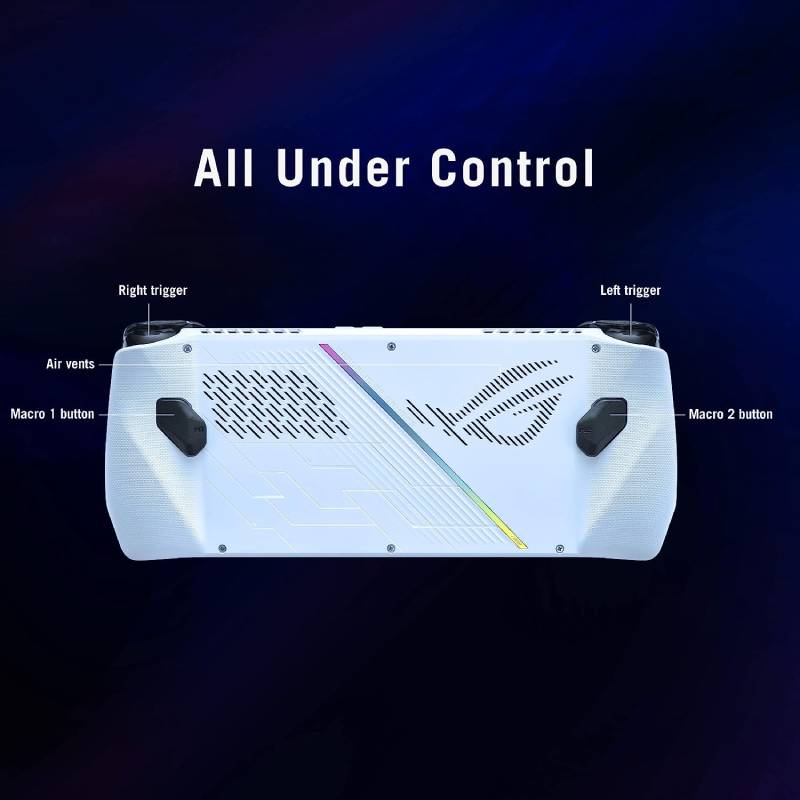

Control and Input
Gamepad controls:
A B X Y buttons
D-pad
L & R Hall Effect analog triggers
L & R bumpers
View button
Menu button
Command Center button
Armoury Crate button
2 x assignable grip buttons
Thumbsticks: 2 x full-size analog sticks with capacitive touch
Haptics: HD haptics
Gyro: 6-Axis IMU
A B X Y buttons
D-pad
L & R Hall Effect analog triggers
L & R bumpers
View button
Menu button
Command Center button
Armoury Crate button
2 x assignable grip buttons
Thumbsticks: 2 x full-size analog sticks with capacitive touch
Haptics: HD haptics
Gyro: 6-Axis IMU
Audio
AI noise-canceling technology
Dolby Atmos
Hi-Res certification
Built-in array microphone
2-speaker system with Smart Amplifier Technology
Dolby Atmos
Hi-Res certification
Built-in array microphone
2-speaker system with Smart Amplifier Technology
Network and Communication
Wi-Fi 6E(802.11ax) (Triple band) 2*2 + Bluetooth 5.2 (*BT version may change with OS version different.)
Battery
40WHrs, 4S1P, 4-cell Li-ion
Power Supply
TYPE-C, 65W AC Adapter, Output: 20V DC, 3.25A, 65W, Input: 100~240V AC 50/60Hz universal
AURA SYNC
Yes
Weight
608g (1.34 lbs)
Dimensions (W x D x H)
28.0 x 11.1 x 2.12 ~ 3.24 cm (11.02″ x 4.37″ x 0.83″ ~ 1.27″)
